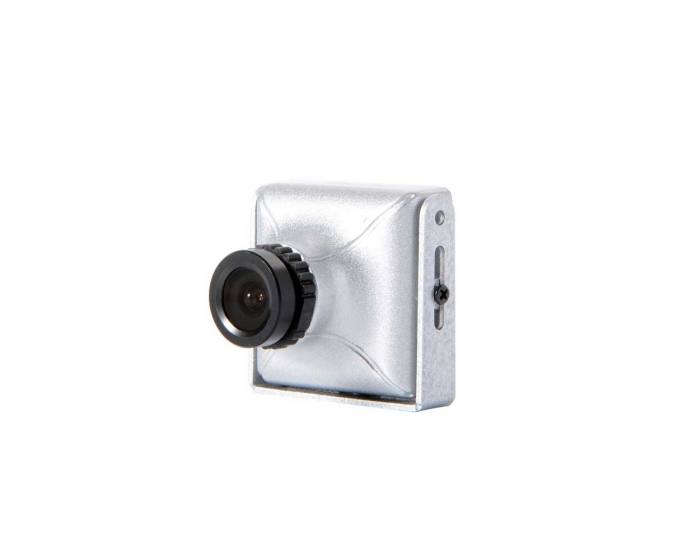

RunCam SKYPLUS FPV Camera - PAL / 2.8mm / IR Unblocked

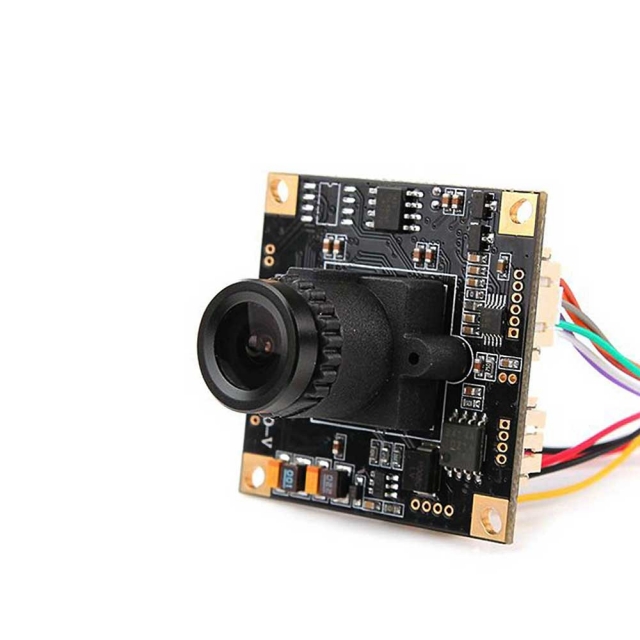

This is an optimized version of PZ0420. It still keeps 600TVL resolution and excellent color rendition, supporting 5 to 17V operating voltage. the board measures 28 x 28mm and with mount mount measures 32 x 33 mm, which can reduce air resistance for FPV aircraft. Besides, the weight of camera is just 18g (with case), 12g (without case) making it ideal for FPV or other aerial camera applications.

The SKYPLUS magnesium alloy casing is both lighter and stronger than the plastic case and improves RF shielding and have better heat dissipation. The SKYPLUS is lightweight, affordable and comes with a bracket and cables ready to install as part of your FPV setup.

Magnesium alloy housing
Color 600TVL Black & white 650TVL High Picture Quality
1/3'' SONY SUPER HAD II CCD
Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
2.8mm wide angle lens
Removable 5D OSD menu
Digital Wide Dynamic Range(D-WDR)
Digital Noise Reduction(2 DNR)
Low Power Consumption
Back light compensation (BLC)
MIRROR
Anti-exposure function support car license recording(HLC)
Low illumination:0.01Lux
White dot repair(DPC)
CVBS(RCA) Video output

SkyPlus Camera with 28mm lens × 1
OSD Menu × 1
Cable × 1
FPV Cable × 1
Manual × 1

Image Sensor: 1/3 SONY SUPER HAD II CCD
Horizontal Resolution: 600TVL
Effective Pixel: PAL:753(H)*582(V), NTSC:768(H)*494(V)
Signal System: PAL/NTSC
Synchronization: Internal
Auto White Balance: Manual/Auto/Auto tracking
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL: 1/50 to 1/100,000sec; NTSC: 1/60 to 1/100,000
Auto Gain Control: off/low/mid/high optional
Back light compensation (BLC): off /BLC/ anti-exposure
Motion Detection (MD): On/Off (multi-level sensitivity)
Min. Illumination: 0.01Lux/1.2F
Shading Area: 8
Power: DC 5 to 17V
Negative/ positive: Negative/ positive optional
Edge light compensation: Yes< br />Display Mode: LED monitor/CRT monitor
Synchronize IR turn on and color turn to B&W: Yes (optional)
IR image optimize: Anti exposure of the object in the middle
DNR: 2DNR
Day/ Night Switch: Auto/ Color/ B&W/ Outside control (position start and end controllable)
Day/ Night time switch: 1 to 30 Switchable time
OSD: Chinese/ English Menu
White dot repair (DPC): Yes
Image adjust: Yes
Function Control: OSD
Dimensions: 31mm * 31mm(SKYPLUS) / 28mm * 28mm(PZ0420M)
Operating Voltage: 5.0V / 12.0V / 17.0V
Supply current: 170mA / 50mA / 30mA
Operation Temp.: –10C to +50C
Operation Environ.: 10% to 90%
