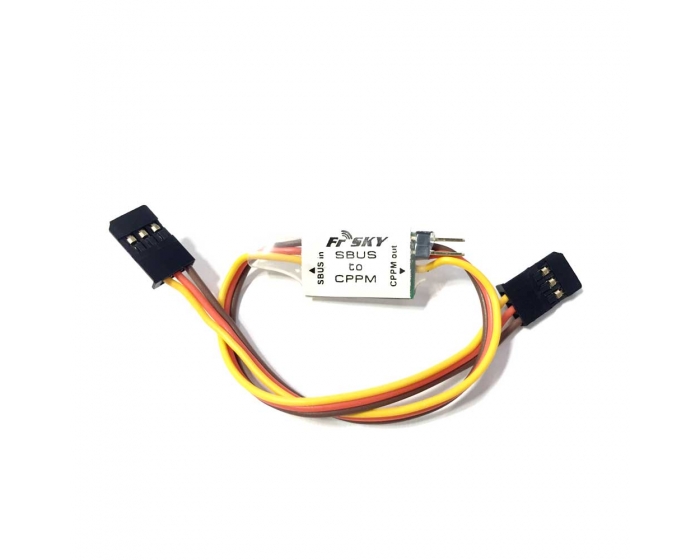

FrSky SBUS to CPPM Converter
The FrSky SBUS to CPPM Converter converts SBUS output signals into CPPM output signals. Simply plug into your SBUS receiver port and your control servo and it will decode the SBUS signal to CPPM. This can be very handy for connecting SBUS receivers to flight contollers and other devices that only offer CPPM inputs.
Overview
The FrSky SBUS to CPPM Converter converts SBUS output signals into CPPM output signals. Simply plug into your SBUS receiver port and your control servo and it will decode the SBUS signal to CPPM. This can be very handy for connecting SBUS receivers to flight contollers and other devices that only offer CPPM inputs.
Highlights
Compatible with receivers that feature the SBUS port. Some examples are the FrSky TFRSB receivers and the Futaba S.BUS receivers (R6208SB, and others) as well as others.

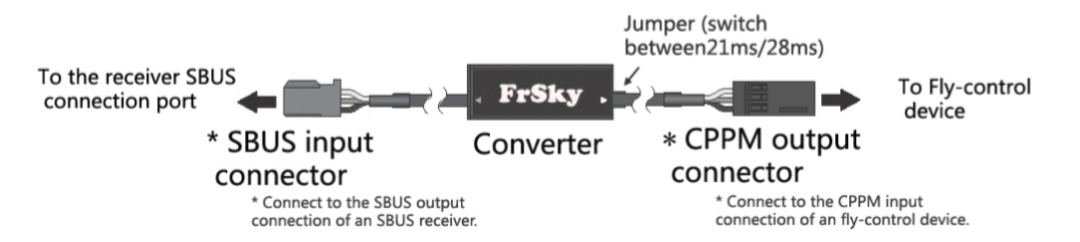

Jumper switches between 21ms and 28ms.
Tips
In the Box
FrSky SBUS to CPPM Converter × 1
Specifications
Weight: 4.1g
Dimensions: 250 x 13 x 5mm
Operating Voltage: 4-10V DC
Max Current: 700mA
Operating Temp Range: -10 - 80 (Degrees C)
Compatibility
Receivers that feature the SBUS port
