DJI Zenmuse L1

Get a Quote
In stock
SKU
DZM-L1

Tax:  Included   Shipping:  Free

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. Forms a complete solution when used with Matrice 300 RTK and DJI Terra to gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Please contact us for pricing and order information.

DJI Zenmuse L1

Instant Clarity. Superior Accuracy.

DJI Zenmuse L1 - Instant Clarity. Superior Accuracy. DJI Zenmuse L1 - Instant Clarity. Superior Accuracy.

A Lidar + RGB Solution for Aerial Surveying

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Digitize without Compromise

DJI Zenmuse L1 - Exceptional Efficiency

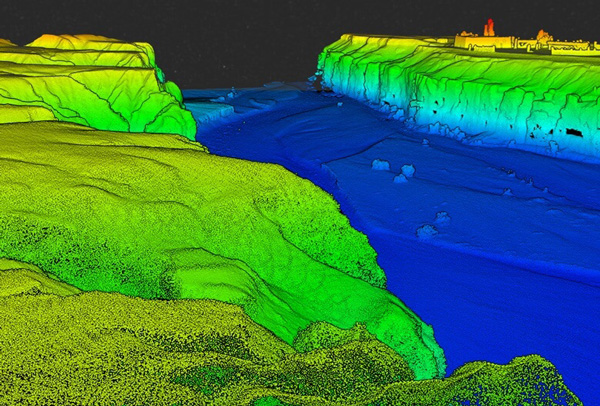

Exceptional Efficiency

Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

DJI Zenmuse L1 - Unparalleled Accuracy

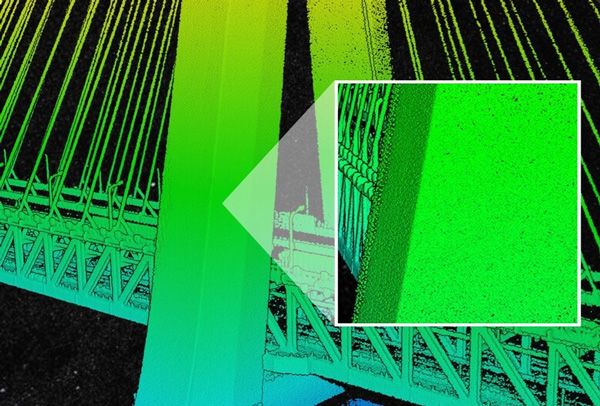

Unparalleled Accuracy

Render centimeter accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

DJI Zenmuse L1 - Ready When You Are

Ready When You Are

The IP44 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

DJI Zenmuse L1 - Ready When You Are

Visualize Data as You Fly

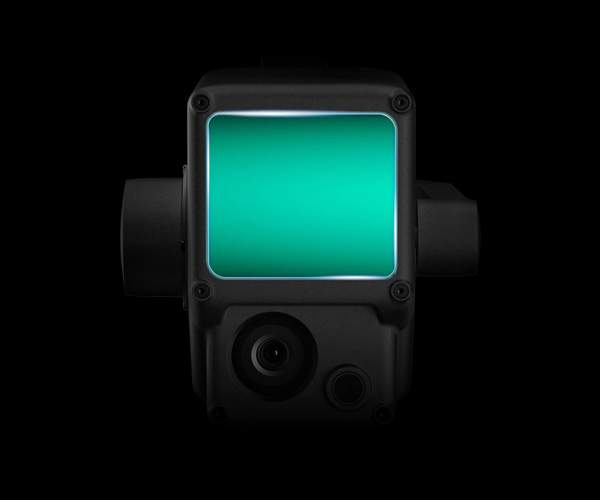

Livox Lidar Module

Frame Lidar with up to 100% effective point cloud results
Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
Effective Point Rate: 240,000 pts/s
Supports 3 Returns [3]
Line Scan Mode and Non-repetitive Scan Mode

DJI Zenmuse L1 - Ready When You Are

Everything in View

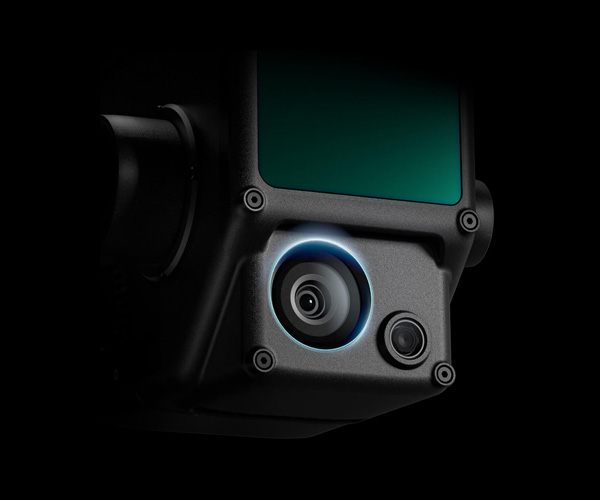

RGB Camera

20MP
1-inch CMOS
Mechanical Shutter

DJI Zenmuse L1 - Ready When You Are

Accurate Details at Your Disposal

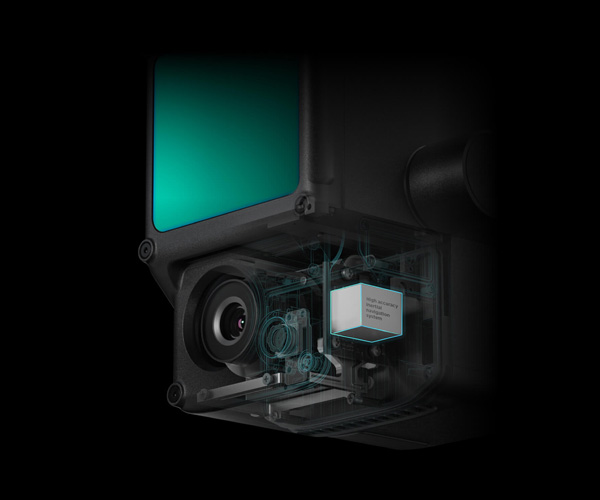

High-accuracy IMU

Accuracy: 0.025° (roll/pitch) / 0.08° (yaw)
Vision Sensor for Positioning Accuracy
GNSS, IMU, RGB Data Fusion

Recreate the World in 3D Point Clouds

DJI Zenmuse L1 - Ready When You Are

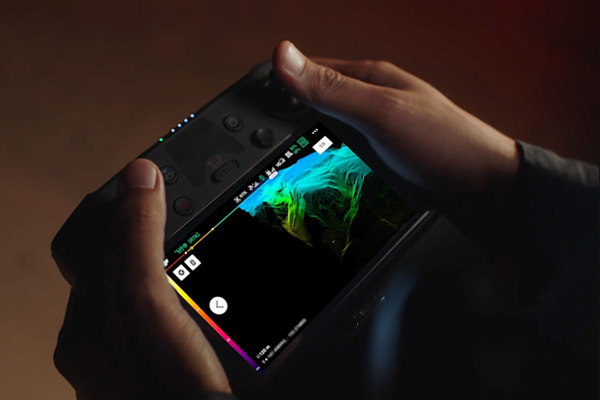

Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly. You can also verify fieldwork quality by checking point cloud data immediately after each flight.

DJI Zenmuse L1 - Ready When You Are

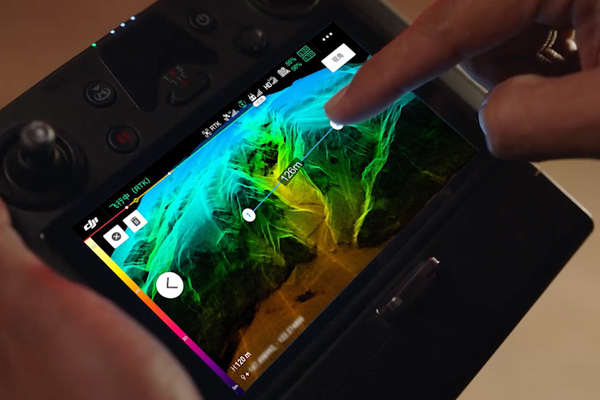

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.

DJI Zenmuse L1 - Ready When You Are

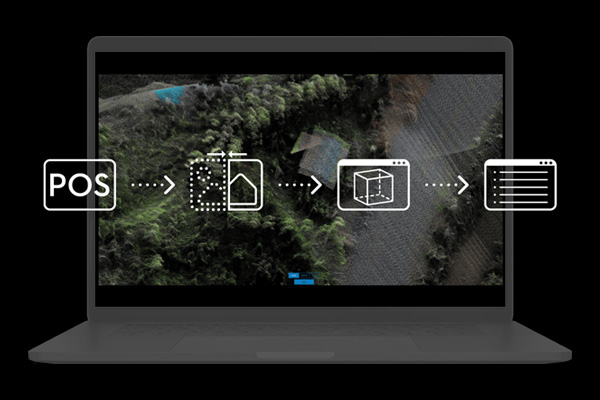

One-stop Post-processing

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.

Application Scenarios

DJI Zenmuse L1 - Application Scenarios DJI Zenmuse L1 - Application Scenarios

Topographic Mapping

Quickly generate topographic maps using accurate digital elevation models.

AEC and Surveying

Manage the full project lifecycle using highly accurate point clouds and 3D models.

Emergency Response

Any time of the day, gather critical insights in real-time using true-color point clouds.

Law Enforcement

Gain situational awareness and forensic intel in real-time to make informed decisions on site.

Energy and Infrastructure

Model sparse or complex structures in detail to manage them efficiently and safely.

Agriculture and Forestry Management

Gain insight into vegetation density, area, stock volume, canopy width, and growth trends.
