DJI P4 Multispectral

Get a Quote
Out of stock
SKU
DP4-MS

Tax:  Included   Shipping:  Free

  • Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.
  • Routine inspections and maintenance involving plants can be made smarter and more efficient when using the P4 Multispectral – leverage its actionable multispectral insights to monitor forest health, measure biomass, map shorelines, or manage riparian vegetation while protecting habitats or ecosystems, and much more.

This is a pre order product. Please contact us for more information.

Out Of Stock

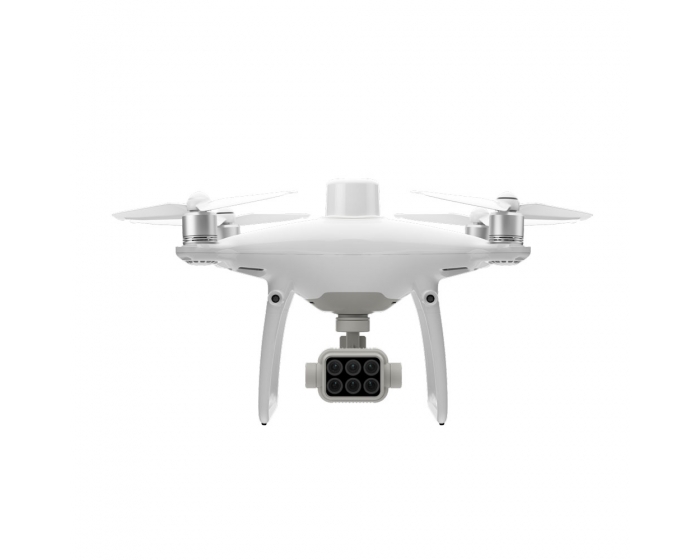

DJI P4 Multispectral

DJI P4 Multispectral

Plant Intelligence for Targeted Action

Gather precise plant-level data using the P4 Multispectral – a high-precision drone with a seamlessly integrated multispectral imaging system built for agriculture missions, environmental monitoring, and more.

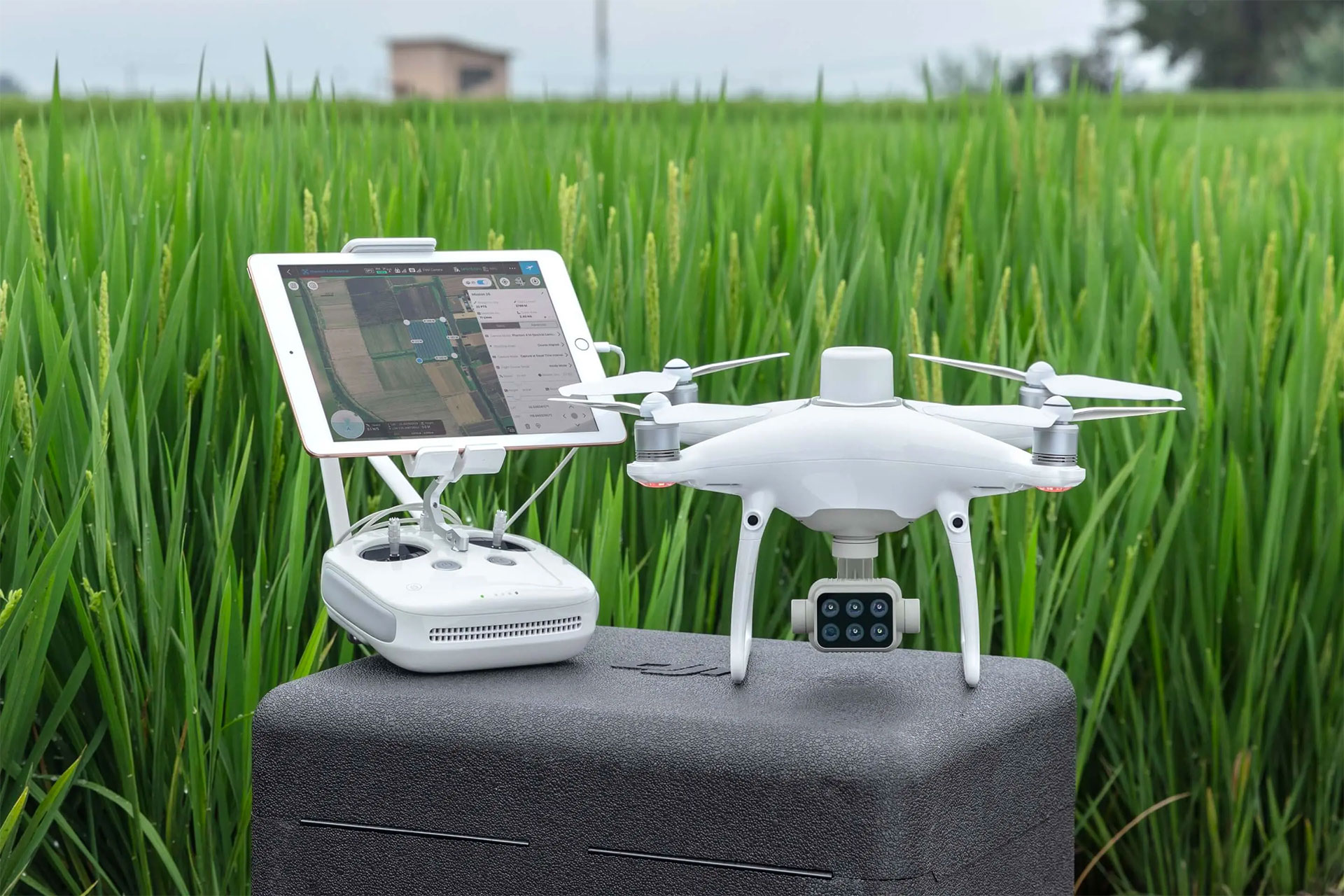

DJI P4 Multispectral Data Capturing

Farm to Figures

Gain Immediate Insights into Plant Health

The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system.

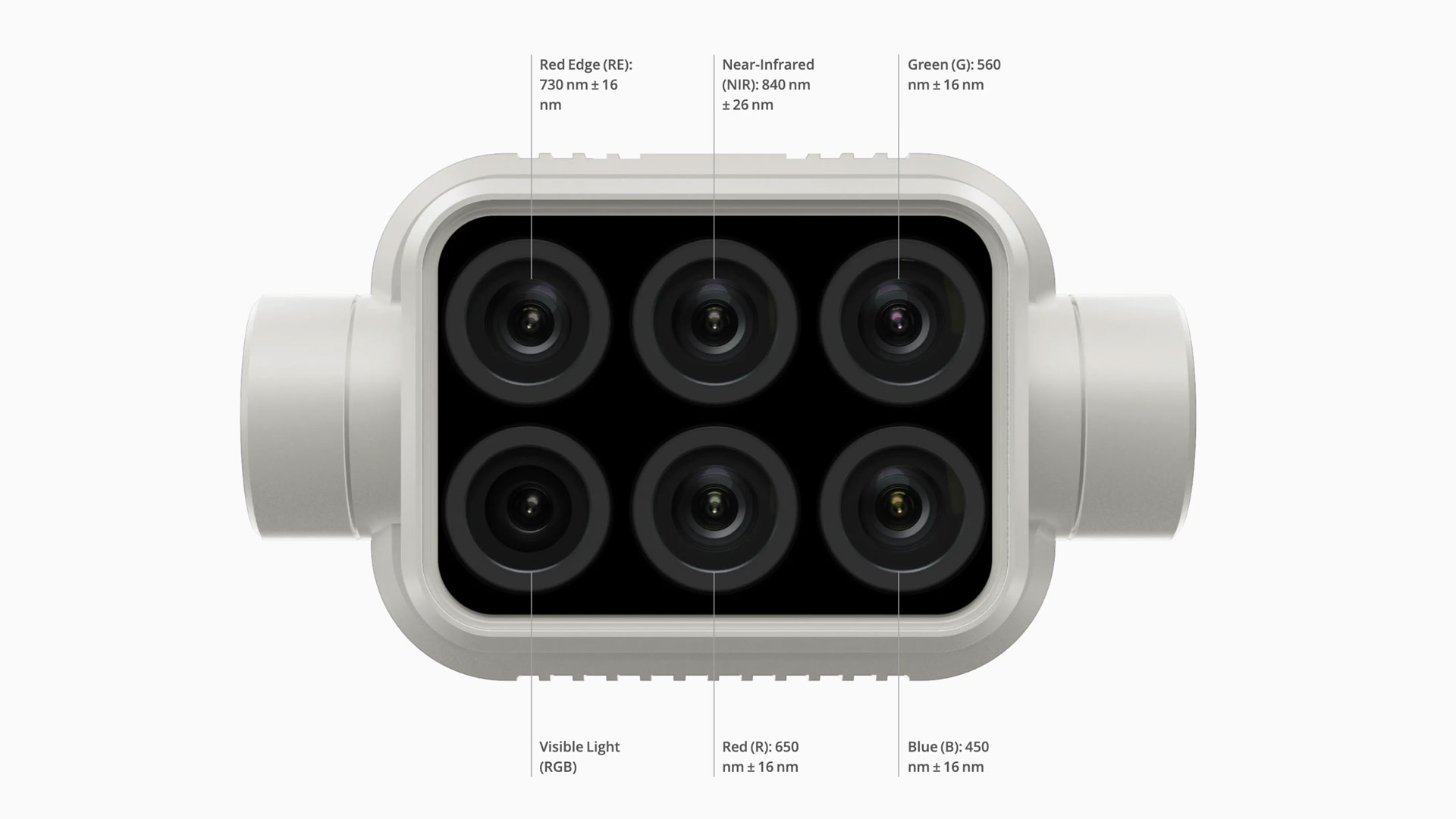

DJI P4 Multispectral 5 Different Cameras Different Datas

See Beneath the Surface

Agriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.

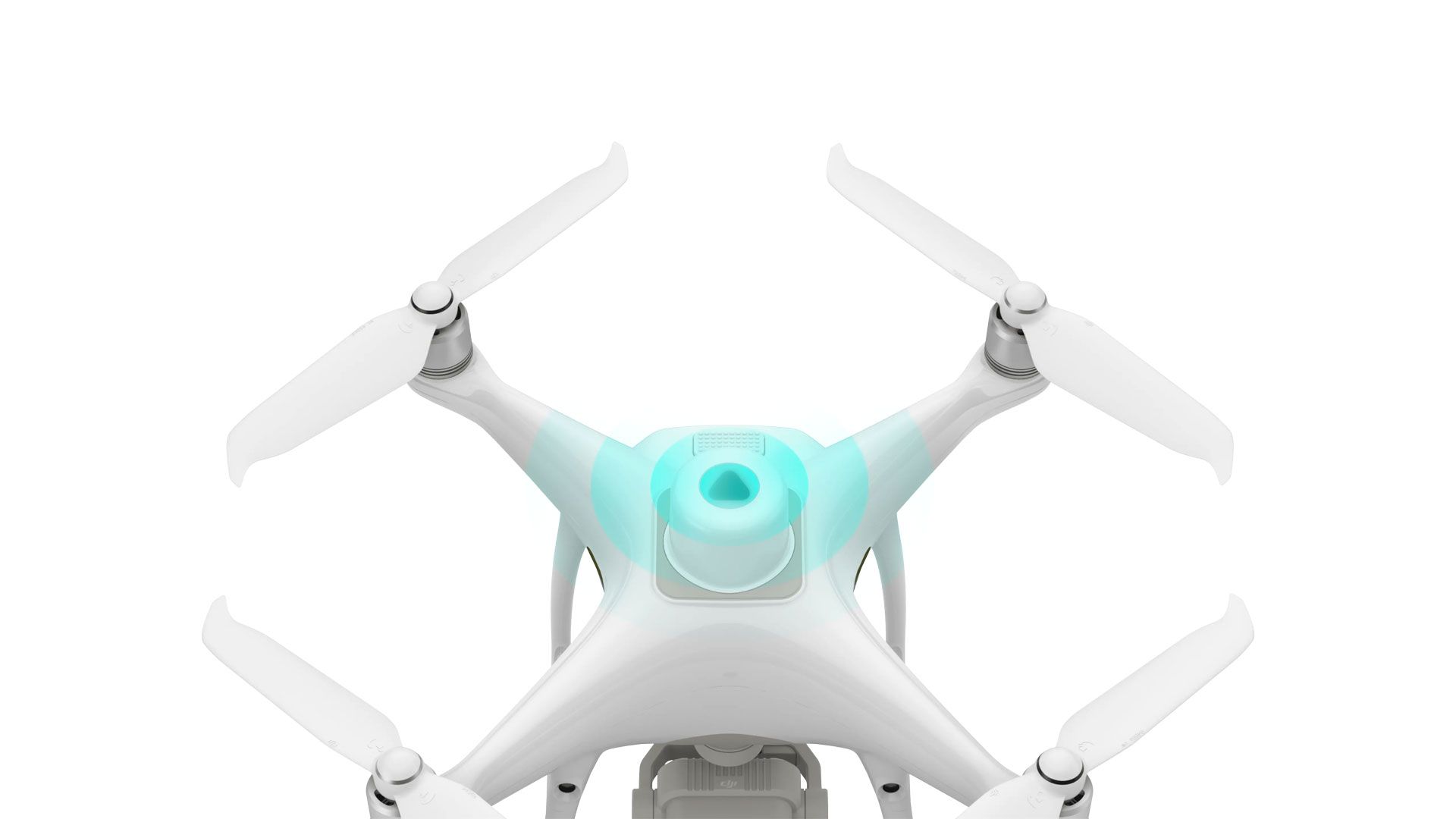

DJI P4 Multispectral Integrated Spectral Sunlight Sensor

Integrated Spectral Sunlight Sensor for Accurate Results

An integrated spectral sunlight sensor on top of the drone captures solar irradiance, which maximizes accuracy and consistency of data collection through different times of day. When combined with post-processed data, this information helps to obtain the most accurate NDVI results.

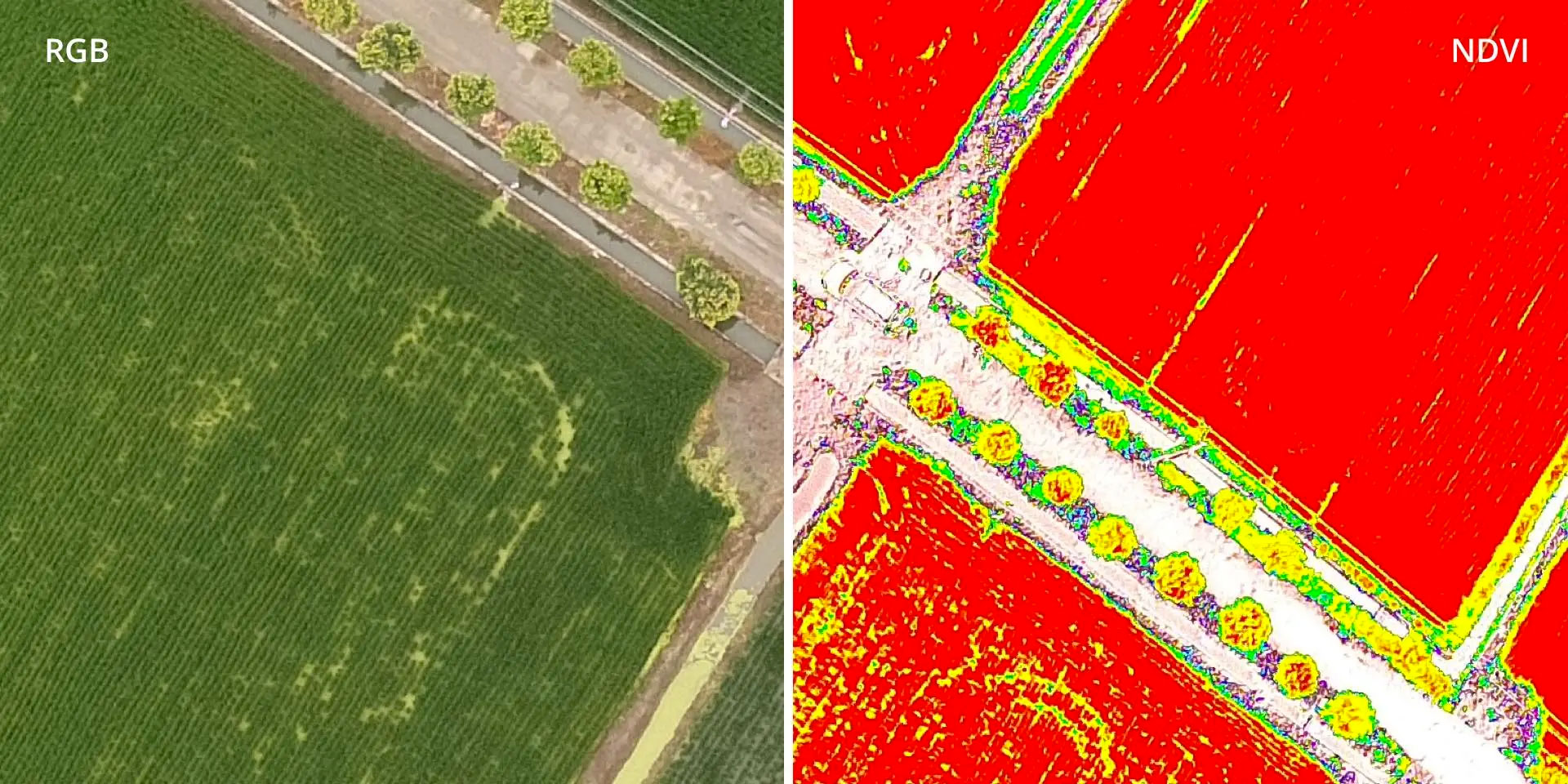

DJI P4 Multispectral View Both RGB and NDVI Feeds

Meaningful Data at Your Disposal

View Both RGB and NDVI Feeds

Simply having aerial imagery is not enough for ag professionals who want to know more. Switch between a preliminary Normalized Difference Vegetation Index (NDVI) analysis and the live RGB feed to immediately visualize where attention is needed, so targeted treatment decisions can be made quickly.

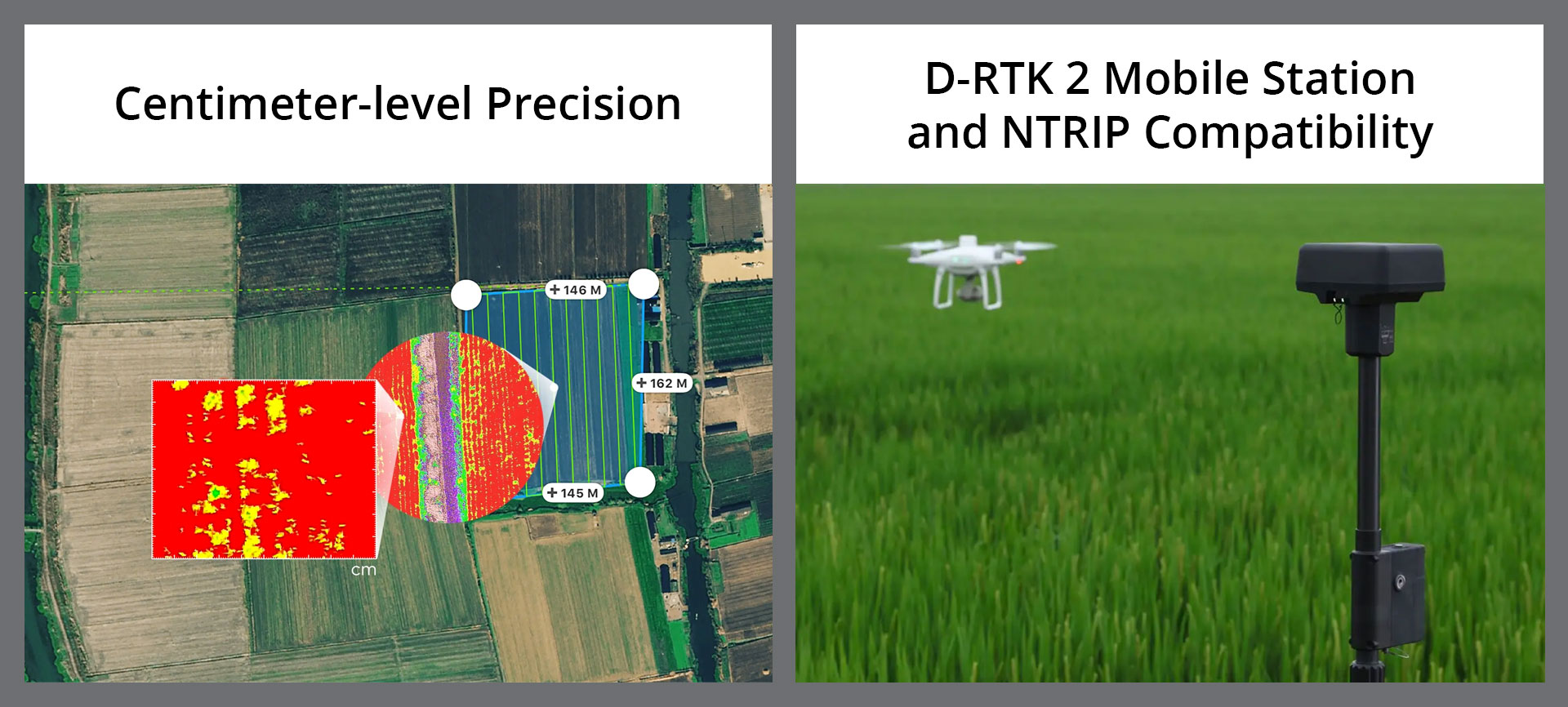

DJI P4 Multispectral Centimeter-level Precision and D-RTK 2 Mobile Station with NTRIP Compatibility

Centimeter-level Precision

Get real-time, accurate positioning data on images captured by all six cameras with DJI’s TimeSync system, providing centimeter-level accurate measurements. The TimeSync system continually aligns the flight controller, RGB and NB cameras, and RTK module, fixing the positioning data to the center of the CMOS and ensuring each photo uses the most accurate metadata. All cameras go through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

D-RTK 2 Mobile Station and NTRIP Compatibility

Enhance the accuracy of RTK positioning without internet connection by connecting the P4 Multispectral to the D-RTK 2 High Precision GNSS Mobile Station and NTRIP (Network Transport of RTCM via Internet Protocol)2, or store the satellite observation data to be used for Post Processed Kinematics (PPK).

DJI P4 Multispectral Intelligent Agriculture Missions

The Beginning of Intelligent Agriculture Missions

Plan Flights

Plan flights, execute automated missions, and manage flight data using GS PRO – DJI’s leading flight planning iOS app.

Capture Data

Collect multispectral images efficiently across a large area using the P4 Multispectral and gain an overview of problem areas.

Analyze Data

Easily access and process aerial data by applying plant-specific metrics and parameters to acquire the desired results on plant health.

Act on Data

Implement targeted treatments on areas that need attention based on accurate drone data.

DJI P4 Multispectral Applications

Applications

Precision Agriculture

Routine inspections and maintenance involving plants can be made smarter and more efficient when using the P4 Multispectral – leverage its actionable multispectral insights to monitor forest health, measure biomass, map shorelines, or manage riparian vegetation while protecting habitats or ecosystems, and much more.

Environmental monitoring and inspection

Routine inspections and maintenance involving plants can be made smarter and more efficient when using the P4 Multispectral – leverage its actionable multispectral insights to monitor forest health, measure biomass, map shorelines, or manage riparian vegetation while protecting habitats or ecosystems, and much more.


Notes:

  1. Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.
  2. To connect to NTRIP, use an iPad that’s connected to the internet with the SDK Remote Controller
  • P4 MultiSpectral x 1
  • Remote Controller x 1
  • Propeller (Pair) x 4
  • Intelligent Flight Battery x 2
  • AC Power Adapter x 1
  • AC Power Cable x 1
  • Battery Charging Hub x 1
  • Gimbal Clamp x 1
  • microSD Card x 1
  • Micro USB Cable x 1
  • Carrying Case x 1
  • Manuals
